Upgrade to Ultimate Comfort Control with MULTI-ZONE SOLUTIONS!

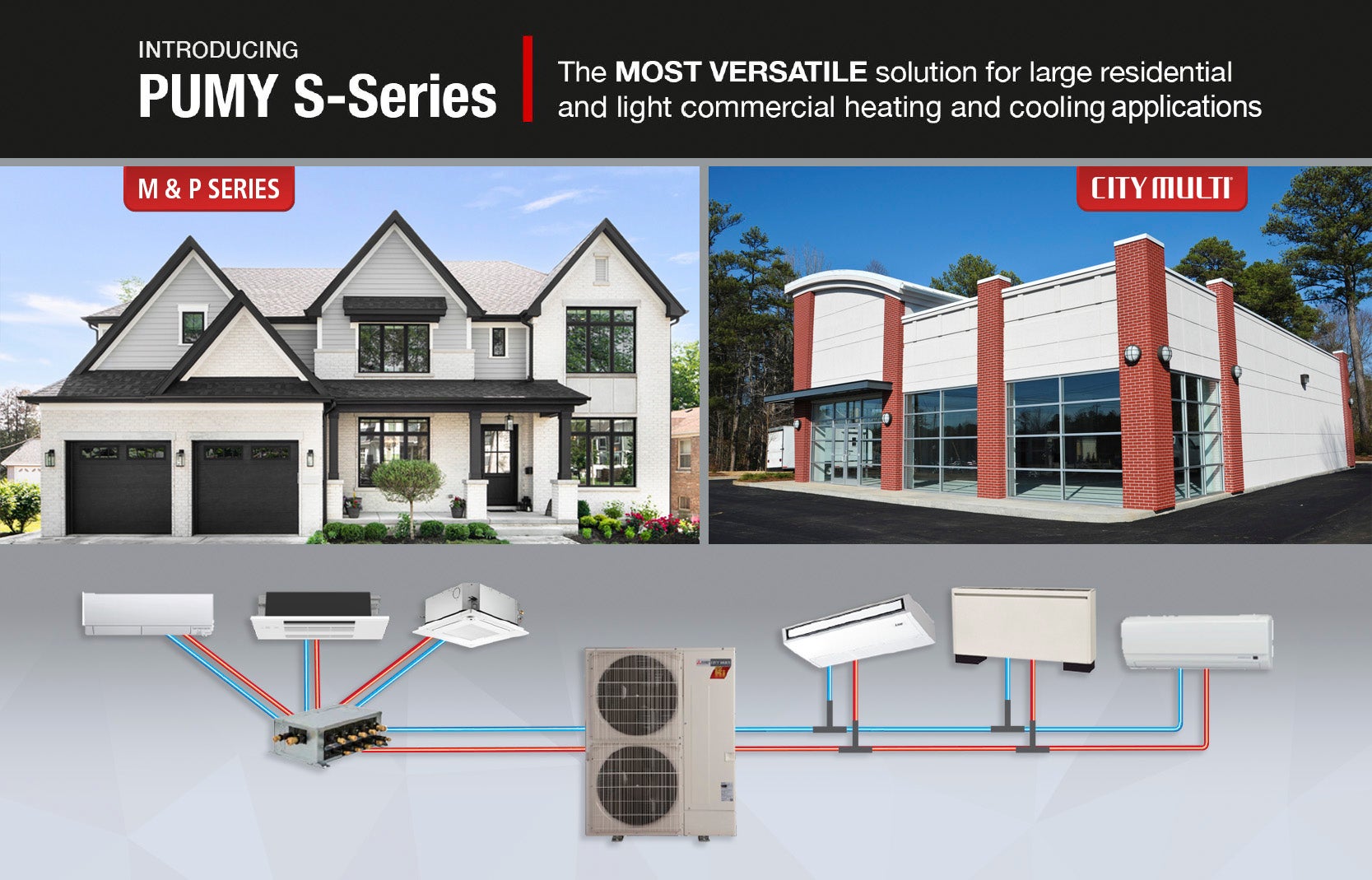

Introducing the most versatile outdoor unit, the S-Series (PUMY) outdoor unit, available in standard heat pump and Cold Climate Hyper-Heat (H2iTM) INVERTER technology. Part of the City Multi family, the H2i PUMY is a single-phase heat pump ideal for large residential and light commercial applications.
MULTI-ZONE COLD CLIMATE HEAT PUMP
Model: PUMY-HP
The PUMY-HP is a single-phase Hyper-Heat INVERTER® heat pump system ideal for light commercial or large residential cold-climate applications. H2i performance provides heating down to -25°C and 100% heating capacity down to -15°C. When paired with City Multi indoor units, it uses the City Multi Controls Network (CMCN) to cool or heat up to 12 individual zones with a choice of indoor unit styles. When paired with M-Series and P-Series, it can connect up to 8 indoor units with a branch box.
Capacities: 36,000 to 48,000 Btu/h
Sound: as low as 49 dB(A)
MULTI-ZONE STANDARD HEAT PUMP
Model: PUMY-P
The PUMY Standard Heat Pump is a single-phase system ideal for light commercial or large residential applications. It provides heating down to -25°C. When paired with City Multi indoor units, it uses the City Multi Controls Network (CMCN) to cool or heat up to 12 individual zones with a choice of indoor unit styles. When paired with M-Series and P-Series, it can connect up to 8 indoor units with a branch box.
Capacities: 36,000 to 60,000 Btu/h
Sound: as low as 49 dB(A)
Key features & benefits
Personalized Comfort Zones
Offers individual comfort control in each zone.
Low Ambient Cooling
Ultra-low ambient air conditioning down to -40°C**
Ultimate Versatility
Compatible with City Multi, M-Series, and P-Series Indoor Units.
Energy Efficient Rating
Designed to optimize energy efficiency without compromising comfort.
Long Pipe Runs
Increase installation flexibility with longer maximum pipe lengths.
Adaptive Airflow Technology
Ensures compatibility with diverse architectural layouts allowing you to choose between traditional ducted configurations or a ductless setup based on specific requirements.
Quiet Operation
PUMY ensures quiet operation with noise levels as low as 49/53 dB, all the while maintaining high-performance standards.
OUTDOOR COIL PROTECTION
Blue Fin coating¥ provides a layer of protection against corrosion, extending the lifespan of the unit.
10 year parts & compressor warranty
With over 100 years of experience, Mitsubishi Electric is known for its exceptional quality and reliability. We are so confident in our product that each system is backed by our 10 year parts and compressor warranty.
Solutions for ANY LARGE RESIDENTIAL OR LIGHT COMMERCIAL PROJECT
Providing the ultimate flexibility, the PUMY outdoor unit is compatible with City Multi, M-Series and P-Series indoor units. For City Multi, up to 12 indoor units can be used without a branch box. For M-Series and P-Series units, up to 8 indoor units can be used with a branch box. See below for the list of different models to choose from.
COMPATIBLE INDOOR UNITS
WALL-MOUNTED
Compact dimensions make these wall-mounted units the ideal choice for offices, stores and residential use. Use multiple units in your space to combat hot or cold spots. They’re also among the quietest wall units in the industry, delivering a high level of comfort and energy efficiency all year round.
Ceiling Concealed
These discreet units can be built right into the ceiling with short-run ducts (SEZ-KD) or built into new or existing ductwork (PEAD-A). The PEFY is available in low, medium and high static pressure, allowing for increased design flexibility. Most units come with a standard drain pump. The PEAD is also available in different static pressures.
1-Way Ceiling Cassette
The 1-Way Ceiling Cassette's low profile allows it to fit seamlessly into any room enhancing its environment while providing comfort.
4-Way Ceiling Cassette
A discreet design with four air outlets and multiple airflow patterns, it offers greater air coverage and distribution while mounting flush to the ceiling. Available with the 3D i-see sensor technology to distribute hot or cold air as required for optimal room comfort. The PLFY's wide airflow pattern allows a larger area to be cooled gradually and its horizontal blow mode ensures draft-free air distribution.
Floor-STANDING
The floor-standing units deliver stylish yet efficient heating and cooling. Depending on the model, it can be installed with a base or recessed into a wall for dramatically reduced depth.
Ceiling Suspended
The Ceiling Suspended model features a standard auto vane function allowing air to be distributed more evenly to every corner of the room. The bi-directional drain pump ensures flexible installation.
Multi-Position Air Handler
Ideal for efficient heating and cooling in new and/or pre-existing ducted applications. The compact design blends seamlessly into tight spaces like an existing furnace room or closet.
HYBRID HEATING & COOLING
The PAA allows for hybrid heating and central cooling. It integrates easily with any brand of existing gas, electric, or propane furnace*. The system chooses the source of energy used to heat the home, switching between the heat pump and furnace to deliver the ultimate efficiency.
MORE INFORMATION
Explore Mitsubishi Electric's PUMY system.
**For -40°C cooling operation with PUMY-P and City Multi Indoor Units, a low ambient kit and front wind deflector are required. Heat operation is prohibited under these conditions.
¥ Blue Fin coating on outdoor coil and base plate on standard models only.
† When installed and registered by a MEQ certified HVAC (Heating, Ventilation, and Air Conditioning) Installer. Certain conditions, restrictions and/or limitations apply. See warranty terms and conditions for complete details. *Furnace must comply with the ANSI Z21.47.CSA2.3 standard. Excludes Oil or Drum type furnaces. Do not install the PAA on any furnaces or applications where supply air temperature could exceed 93.3 °C / 200 °F, or where the furnace output capacity is greater than 300% of the rated PAA heating capacity. See Installation Manual for further information.
